X400U
  • X400U
  • X400U
X400U

characteristic:

1.1 the motor is equipped with an automatic recovery temperature protector

1.2 heavy duty, direct drive powerful motor

1.3. Low noise

1.4 oil free design

1.5. High strength stainless steel airtight valve

1.6. High performance wear-resistant piston ring

1.7 anode aluminum alloy cylinder

1.8 low noise durable air pump and motor provide quiet work and long service life

1.9 moisture and dust prevention

2.0 heat resistant steel-clad yarn rubber tube, equipped with one-way valve and rotary joint

2.1 double layer filter, which can be installed remotely

2.2 equipped with shock-absorbing foot pads

Service Hotline

13886501872
13809667059

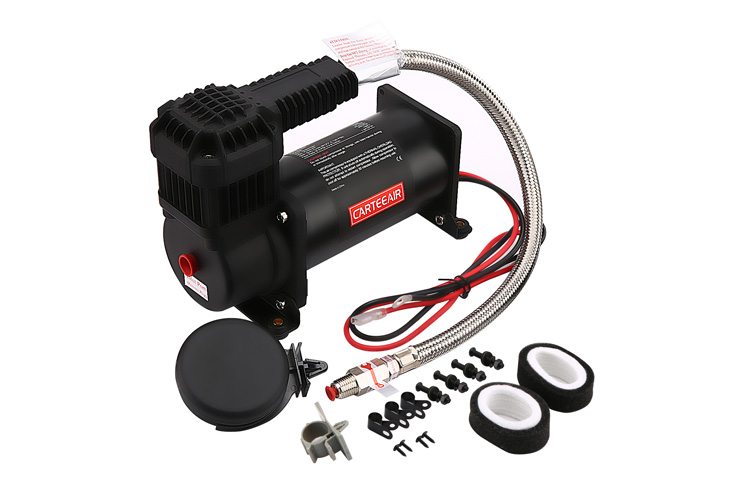

The air pump combination includes:

X400u high pressure air pump

Filter bank

Mounting screw set

performance data
Maximum working pressure 200 PSI
Maximum instantaneous pressure 300 PSI
Maximum flow 2.68 CFM (76.0 L/min)
Flow @ 100 psi 1.76 CFM (50.0 L/min)
Maximum duty cycle 33% (15m on / 30m off @ 100 PSI)
One sustainable working time 40 minutes @ 30 psi
environment condition
Minimum ambient temperature -40° F (-40° C)
Maximum ambient temperature 176° F (80° C)
electrical
Motor type Permanent magnet type
Voltage 12 volts DC
Maximum current 35 Amps
maximum power 420 Watts
physical characteristics
Length of air pipe 20.5 in (520.0 mm)
Joint 1/4in NPT Male
long 8.86 in (225.0 mm)
wide 3.94 in (100.0 mm)
high 6.77 in (172.0 mm)
weight 8.65 lbs (3.924 kg)

Pump performance data

X400U (DC-12V)
PSI LPM Amp(s)
0 76 19.5
10 68 21.3
20 66 25.6
30 64 27.4
40 62 28.1
50 60 29.3
60 58 31.4
70 56 32.1
80 54 32.8
90 52 33.4
100 50 33.9
110 48 34.2
120 46 34.6
130 44 34.8
140 43 35
150 42 35
