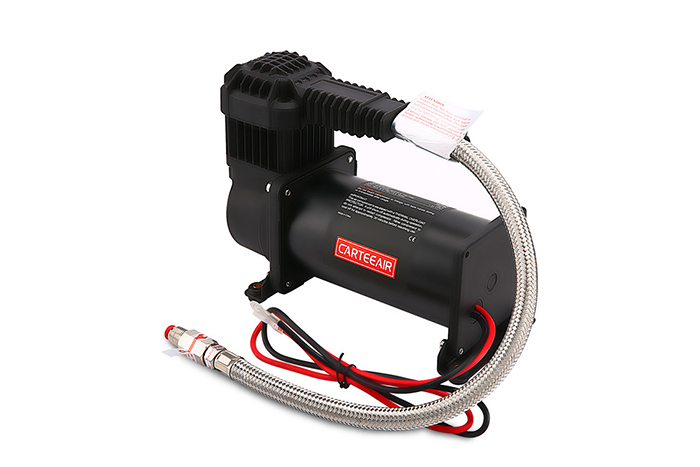

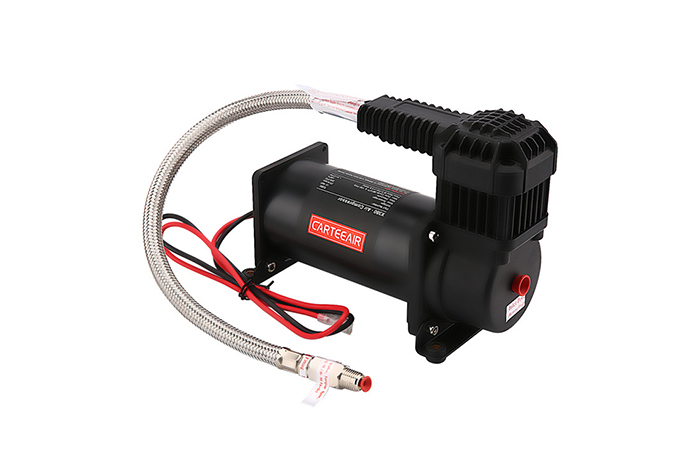

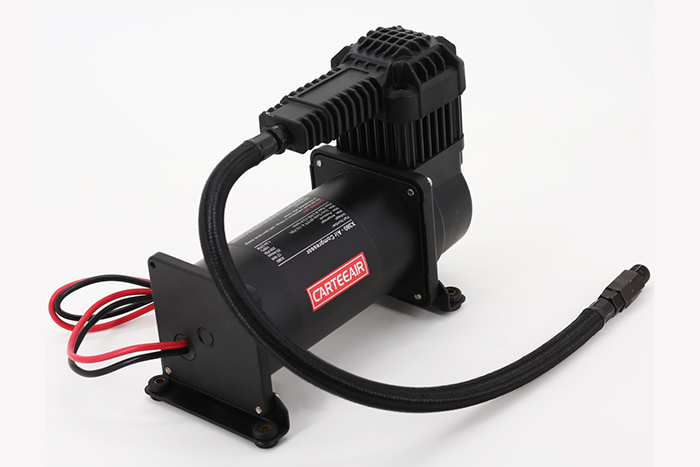

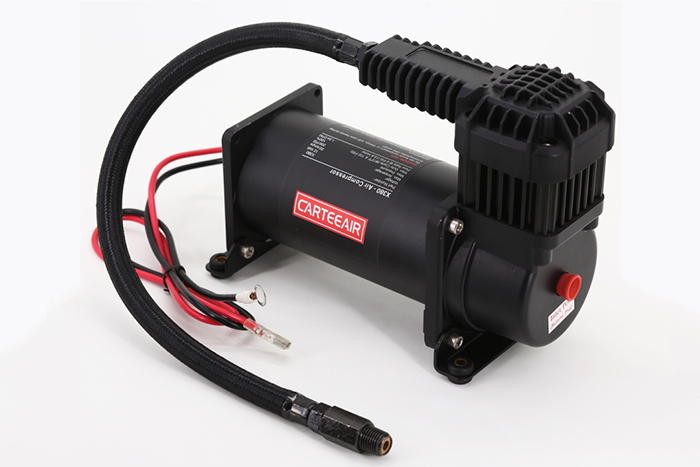

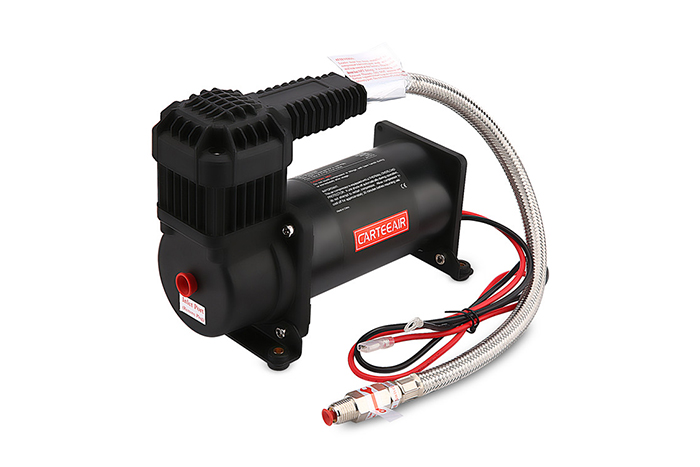

X400 compressor is a 33% duty cycle compressor that works quickly and efficiently putting out 2.54 CFM flow at 0 PSI.

It includes a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Model No. X400

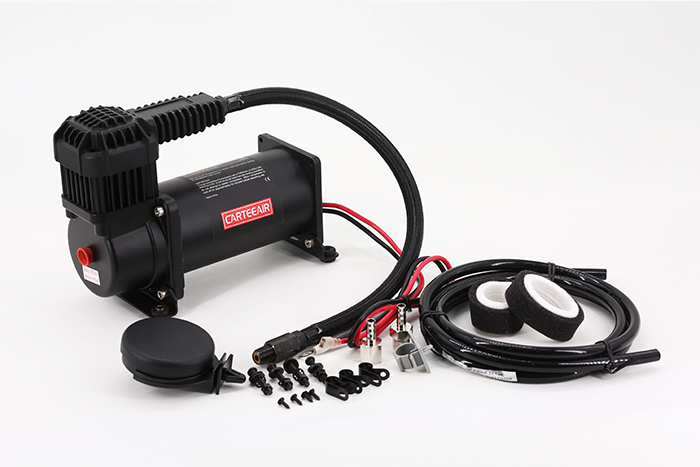

Included Parts:

- Check Valve

- Vibration Isolators

- Mounting Hardware

- Stainless Steel Braided Leader Hose

- Air Line for Remote Mount Air Filter

- Remote Mount Air Filter Assembly

- (2) Replacement Air Filter Elements

SPECIFICATIONS:

Part No. X400 Air Compressor

Motor Voltage:12 volts

Max. Current Consumption: 30 amps

Motor Type:Permanent

                    Magnetic

Horsepower:1/4

Max. Working Pressure:150 PSI

Max. Duty Cycle (@72ºF & 100 PSI):33%

Minutes On/Off (@72ºF & 100 PSI): 15 On/30 Off

Max. Restart Pressure:200 PSI

Max. Ambient Temperature:158F

Min. Ambient Temperature:-40F

Auto. Reset Thermal Protection:Yes

Permanent Magnetic Motor

Max. Amp Draw: 30 Amps

Dimensions: 217*100*171.5mm

Net Weight: 8.75 lbs.

Max. Intermittent Pressure: 250PSI

Max. Flow Rate: 72L/Min (2.54CFM)
